R7S RX7s and RSC Lamp Holder Ceramic Socket - Front Mount Holder

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

R7S RX7s and RSC Lamp Holder Ceramic Socket - Front Mount Holder

R7S RX7s and RSC Lamp Holder Ceramic Socket - Front Mount Holder

Description

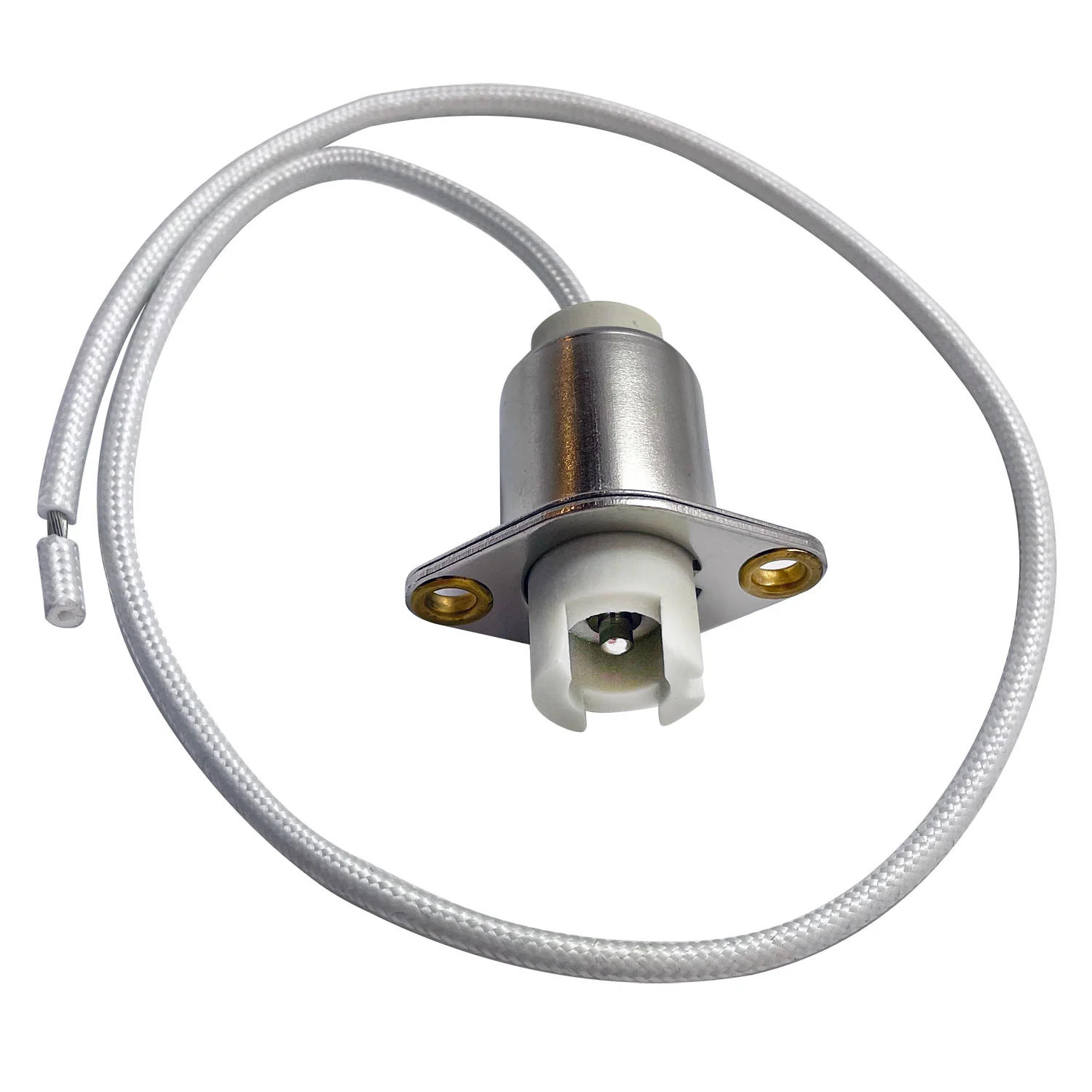

BulbAmerica Lampholder for double ended R7S, RX7S and RSC bulbs - S26A AWG16 SF2 (URC) 18in Lead Length
This socket is a front-mount socket. For the back mount socket, please search for SKU R7S-BM-SOCKET, or see related items below.
This item is the same as Osram SKU # 69011 S26A or Ushio SKU # 1000117 (Ushio wire on is shorter).

This lamp holder is for bulbs with R7s and RX7s base, like:
- 150/25T4, - FCM, - FFM, - DWT, - FDA, - FHM, - DXW, - FDB, - 64579 115, -120V, - EHP, - FDN, - FFT, - EHR, - FER, - 6.6A/200T5/CL/64380, - EJG, - FEX/230, - 6.6A/45T3/CL/64315, - FAD, - FEX/240, - 1600T3Q/IR/7 240V, - FAL, - FEY, - 2500T3Q/IR/7 480V, - FCB, - FFJ, - 500T3Q/IR/7 120V
- Brand Name: BulbAmerica
- R7s, RX7s Recessed Single Contact (RSC) socket
- Wire Gauge: 16 AWG
- Maximum Voltage (V) 600
- Maximum Wattage (W) 3000

Specs

Manufacturer BulbAmerica
Part Number R7S-FM-SOCKET
UPC 675650419412
Application Lamp Holder
Base R7s Recessed Single Contact, RX7S RSC
Wire Color White
Contact Material Silver Plated Copper
Operation Temperature (F) 662
Type R7S
Voltage (V) 600
Wire Guage/Type AWG16 SF2
Length (in) 18.00

Video

$8.10

Original: $27.00

-70%
R7S RX7s and RSC Lamp Holder Ceramic Socket - Front Mount Holder—

$27.00

$8.10

Product Information

Shipping & Returns

Description

Description

BulbAmerica Lampholder for double ended R7S, RX7S and RSC bulbs - S26A AWG16 SF2 (URC) 18in Lead Length
This socket is a front-mount socket. For the back mount socket, please search for SKU R7S-BM-SOCKET, or see related items below.
This item is the same as Osram SKU # 69011 S26A or Ushio SKU # 1000117 (Ushio wire on is shorter).

This lamp holder is for bulbs with R7s and RX7s base, like:
- 150/25T4, - FCM, - FFM, - DWT, - FDA, - FHM, - DXW, - FDB, - 64579 115, -120V, - EHP, - FDN, - FFT, - EHR, - FER, - 6.6A/200T5/CL/64380, - EJG, - FEX/230, - 6.6A/45T3/CL/64315, - FAD, - FEX/240, - 1600T3Q/IR/7 240V, - FAL, - FEY, - 2500T3Q/IR/7 480V, - FCB, - FFJ, - 500T3Q/IR/7 120V
- Brand Name: BulbAmerica
- R7s, RX7s Recessed Single Contact (RSC) socket
- Wire Gauge: 16 AWG
- Maximum Voltage (V) 600
- Maximum Wattage (W) 3000

Specs

Manufacturer BulbAmerica
Part Number R7S-FM-SOCKET
UPC 675650419412
Application Lamp Holder
Base R7s Recessed Single Contact, RX7S RSC
Wire Color White
Contact Material Silver Plated Copper
Operation Temperature (F) 662
Type R7S
Voltage (V) 600
Wire Guage/Type AWG16 SF2
Length (in) 18.00
