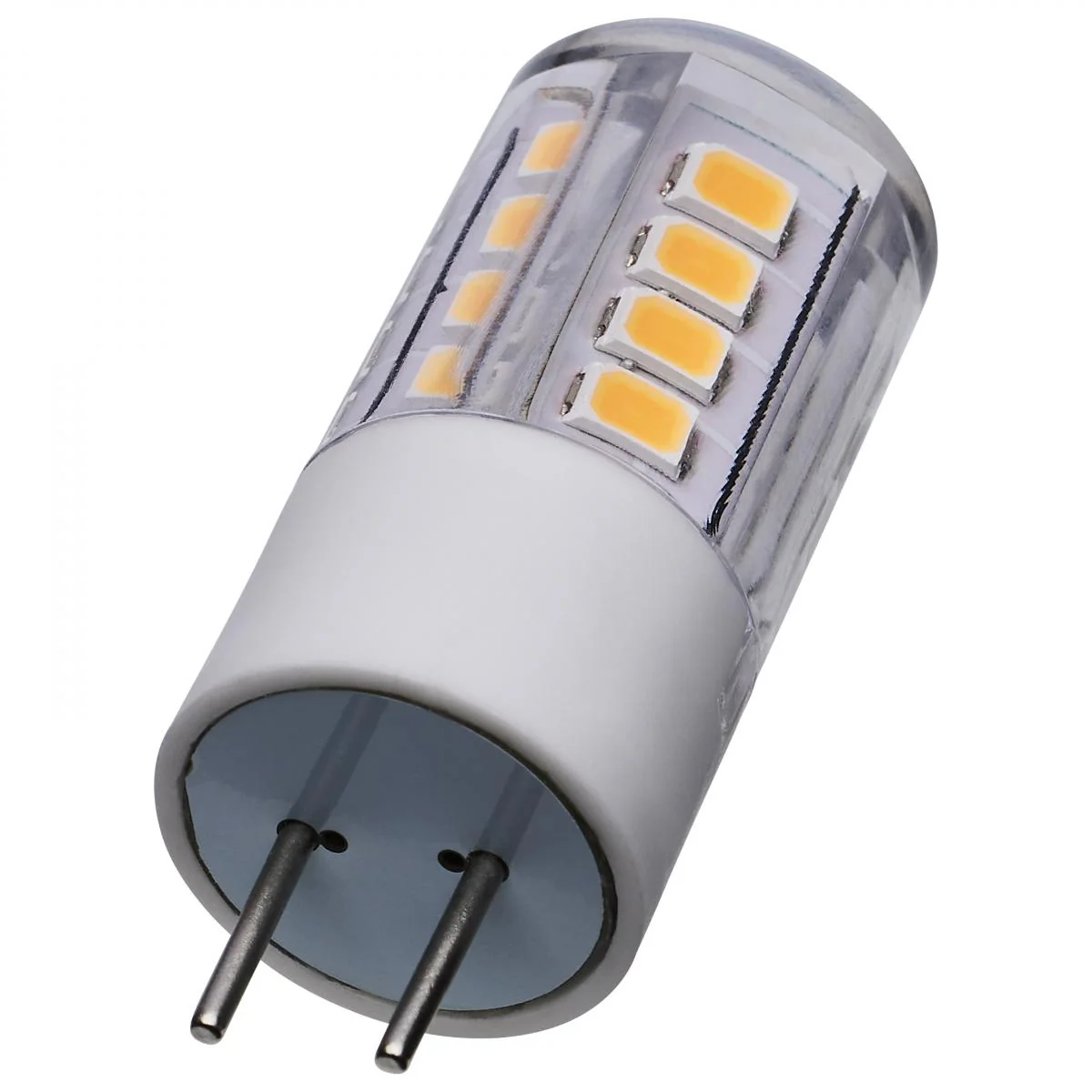

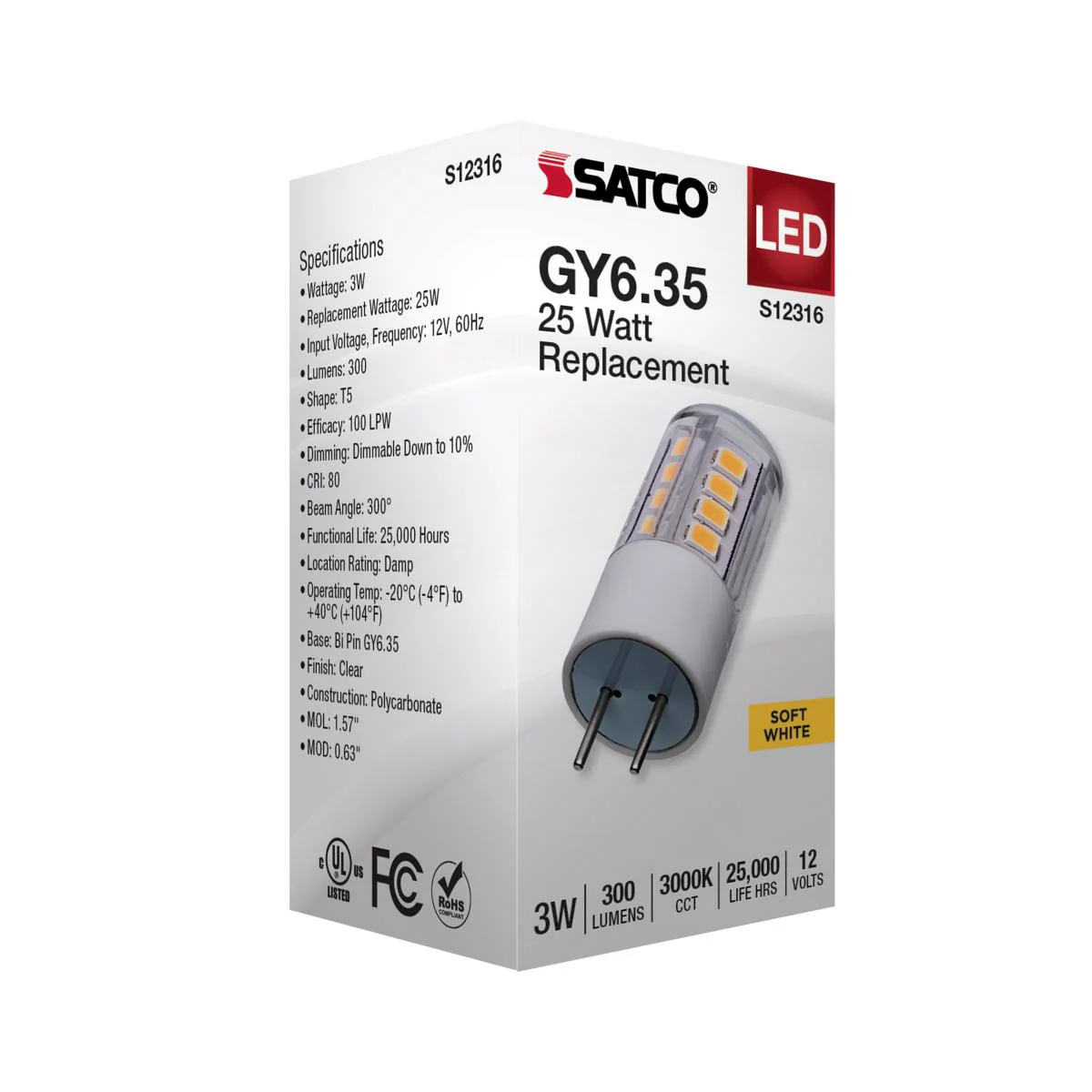

Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO S12316 3-watt, GY6.35-base, Halogen replacement lamp. Engineered for low 12-volt operation and featuring 300-degree omni-directional lighting, this lamp is versatile for a multitude of applications, including accent lighting, chandeliers, landscape illumination, and displays. Available in 3000K CCT with a clear finish, this lamp, equipped with LED technology, will ensure substantial life hours and long-term savings.

Features:
- Watts: 3W, Incandescent Equivalent: 25W
- Volts: 12V, Shape: T5
- Base: Bi Pin GY6.35, Ansi Base: GY6.35
- Finish: Clear, Lumens: 300L
- Temperature: Soft White, CCT (Kelvin): 3000K
- Warranty: 5 Year Limited

General
Watts	3W
Incandescent Equivalent	25W
Volts	12V
Shape	T5
Base	Bi Pin GY6.35
Ansi Base	GY6.35
Finish	Clear
CCT (Kelvin)	3000K
Temperature	Soft White
CRI	80
Lumens	300L
Beam Spread	300
Dimmable	Yes-Dimmable
Rated Life	25000
Electrical
Operating Frequency	60Hz
Power Factor	0.7
Operating Temperature	-20C (-4F) to 40C (104F)
Physical
MOL	1.57
MOD	0.63
Housing Color	White
Weight (lb.)	0.02
Additional Information
Rated For Enclosed Fixture	Yes
Installation Notes	Not for use in vapor tight fixtures.
Warranty	5 Year Limited
Compliance
Safety Listing	cULus - Certified;cULus - Listed
Location Rating	Damp
California Status	Lawful for sale
Title 20 / 24 Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S12316 Data Sheet
